CGW系列船用排污泵
產品名稱：CGW系列船用排污泵一、概述General
CGW系列船用排污泵系電動直立式管道型單通道葉輪離心排放泵（簡稱排污泵)。該系列泵適用于輸送含有直徑為泵口徑1/3的固體物塊和含有長度為泵口徑5倍的纖維材料，溫度在85℃以下的生活污水、工業廢水、油污水、淡水或海水。是污水處理設備的配套泵。
CGW Series marine sludge discharge pump is a moror-driven uprightness meatussingle-channel impeller centrifugal drainage pump(referrde to as “sump pump”). The pumps of this series are suitable for transferring sewage, industrial waste water, oily water, fresh water of sea water at a temperature below 85℃, containing solids with a diameter up to one third of that of the pump port, and fibers with a length up to five times of that of the ports. They are the best choice for use in conjunction with waster water treatment plants.

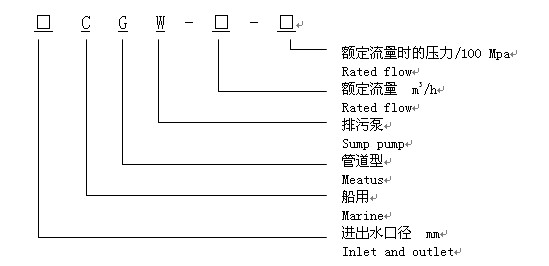

二、型號說明：Type meaning
三、主要技術性能參數：Main technical parameter
型號 Type | 流量 | 壓力 | 電機功率 | 進口管徑 | 出口管徑 |
20CGW-3-6 | 3 | 0.06 | 0.37 | 20 | 20 |
25CGW-2-4 | 2 | 0.04 | 0.25 | 25 | 25 |
25CGW-5-10 | 5 | 0.10 | 0.55 | 25 | 25 |
25CGW-10-15 | 10 | 0.15 | 1.1 | 25 | 25 |
32CGW-8-15 | 8 | 0.15 | 1.1 | 32 | 32 |
32CGW-10-25 | 10 | 0.20 | 1.5 | 32 | 32 |
40CGW-10-15 | 10 | 0.15 | 1.1 | 40 | 40 |
40CGW-15-25 | 15 | 0.25 | 2.2 | 40 | 40 |
