CYBW型自潤滑氣泵
產品名稱：CYBW型自潤滑氣泵一、概述
CYBW系列船用自潤滑氣泵具有體積小、重量輕、能耗省，排氣純凈無油漬污染等特點。符合船用配套要求。
CYBW系列船用自潤滑氣泵是為船用污水處理裝置配套而設計，同時適用于印刷機械、包裝、吹塑、燈具等行業配套使用。
CYBW Series marine air pump is the self lubricating Sliding-vane air pump,which has the features of smaill size, lighe weight, energy-saving,and clean exhausted air with no oil poilution,etc. It can meet the requirement for marine uses.CYBW series marine air pump is designed specially as the auxiliary equipment for marine sanitary sewage disposal system, it is also applicable to the industries of printing machinery packing, blow molding, and light fittings etc.

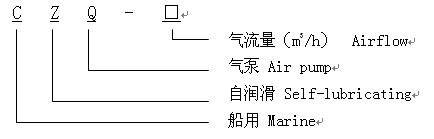

二、型號說明：Type meaning
三、主要技術性能參數：Main technical parameter
序號 | 型號 | 流量 | 排氣壓力 | 轉速 | 功率 | 接管外徑Inlet piping Dia | 重量 |
1 | CYBW-6 | 6 | 60 | 1400 | 0.25 | 16 | 13 |
2 | CYBW-10 | 10 | 0.37 | 16 | 14 | ||
3 | CYBW-15 | 15 | 0.55 | 20 | 16 | ||
4 | CYBW-20 | 20 | 0.75 | 20 | 18 | ||
5 | CYBW-25 | 25 | 1.1 | 27 | 34 | ||
6 | CYBW-40 | 40 | 1.5 | 27 | 38 |
