CWF系列粉碎泵
產品名稱：CWF系列粉碎泵一、概述General
CWF系列船用粉碎泵系開式葉輪離心排放泵，用于溫度低于85℃的生活污水中的軟質污物粉碎及輸送，經循環粉碎后的固體顆粒直徑不大于5mm，也適用于船用重油底溫凝結粉碎，便于噴射。
CWF Series marine pulverizing pump is the open impeller cenfrifugal discharge pump, which is used to pulverize and transferthe soft foul in the anitary sewage under 85℃. Themaximum dimeter of solid particle afetr circular pulverizing is within 5mm. It is also applicable to pulverize the coagulate of
heavy oil under low temperature, in order to facilitate injection.

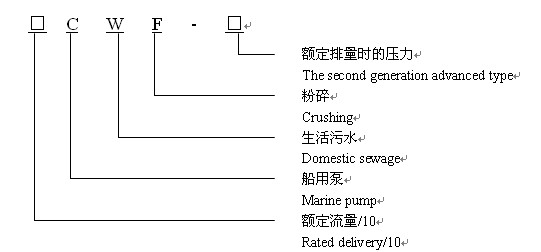

二、型號說明：Type meaning
三、主要技術性能參數：Main technical parameter
型 號 Type | 流 量 | 揚 程 | 汽蝕余量 | 轉速 | 電機功率 |
0.5CWF-8 | 5 | 8 | 5.0 | 2900 | 0.75 |
0.5CWF-10 | 5 | 10 | 5.0 | 2900 | 1.1 |
0.5CWF-20 | 5 | 20 | 5.0 | 2900 | 1.5 |
1CWF-11 | 10 | 11 | 5.0 | 2900 | 1.5 |
1CWF-15 | 10 | 15 | 5.0 | 2900 | 3 |
2CWF-11 | 20 | 11 | 5.0 | 2900 | 2.2 |
3CWF-10 | 30 | 10 | 5.0 | 2900 | 4 |
3CWF-30 | 30 | 30 | 5.0 | 2900 | 11 |
