CWF型船用水泵臥式
產品名稱：CWF型船用水泵臥式一、概述
CWF型船用臥式封水泵具有結構新潁，體積小，安裝、使用、維修方便等特點。該產品是挖泥船泥泵配套用封水泵，用于保護泥泵正常工作，延長泥泵使用壽命，也可用于各種船舶、軍艦作艙底泵、壓載泵、消防泵等。

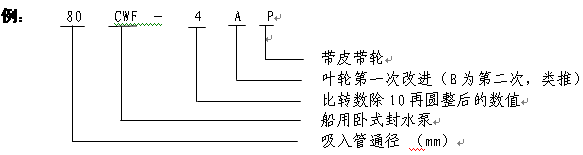

二、型號說明
三、技術性能參數
型 號 | 流量 m3 /h | 揚程 m | 轉速 r /min | 功率 kw | (NPSH)r m | 泵質量 kg |
65CWF-3.5 | 25 | 100 | 2950 | 15 | 3 | 181 |
65CWF-5.5 | 25 | 80 | 15 | 3 | 165 | |
65CWF-9 | 40 | 30 | 7.5 | 3 | 136 | |
65CWF-7 | 40 | 40 | 11 | 3 | 154 | |
65CWF-6.5 | 30 | 40 | 7.5 | 3 | 124 | |
65CWF-6 | 40 | 50 | 15 | 3.5 | 152 | |
65CWF-5 | 40 | 60 | 15 | 3.5 | 163 | |
65CWF-4.5 | 40 | 80 | 18.5 | 3.5 | 185 | |
65CWF-4 | 30 | 70 | 15 | 3.5 | 156 | |
65CWF-3.5 | 40 | 100 | 30 | 4 | 238 | |
65CWF-3 | 40 | 120 | 30 | 4 | 246 | |
80CWF-4 | 30 | 80 | 15 | 3 | 169 | |
80CWF-7.5 | 50 | 50 | 18.5 | 4 | 178 | |
80CWF-8.5 | 50 | 40 | 15 | 4 | 142 | |
80CWF-10 | 50 | 30 | 11 | 4 | 131 | |
80CWF-6 | 50 | 65 | 18.5 | 4 | 149 | |
80CWF-5 | 50 | 80 | 30 | 4 | 296 | |
80CWF-5A | 50 | 70 | 22 | 4 | 262 |
型 號 | 流量 m3 /h | 揚程 m | 轉速 r /min | 功率 kw | (NPSH)r m | 泵質量 kg |
80CWF-3.5 | 50 | 120 | 2950 | 37 | 4.5 | 322 |
80CWF-11 | 60 | 30 | 11 | 4.5 | 112 | |
80CWF-8 | 60 | 40 | 15 | 4.5 | 148 | |
80CWF-7 | 60 | 50 | 18.5 | 4.5 | 197 | |
80CWF-6.5 | 60 | 60 | 22 | 4.5 | 258 | |
80CWF-5.5 | 60 | 80 | 30 | 4.5 | 286 | |
100CWF-4.5A | 60 | 100 | 37 | 5 | 302 | |
100CWF-4.5 | 60 | 110 | 37 | 5 | 330 | |
100CWF-4 | 60 | 120 | 45 | 5 | 366 | |
100CWF-10 | 80 | 30 | 18.5 | 5.5 | 149 | |
100CWF-8.5 | 80 | 40 | 22 | 5.5 | 267 | |
100CWF-7.5 | 80 | 50 | 30 | 5.5 | 319 | |
100CWF-65 | 80 | 60 | 37 | 5.5 | 338 | |
100CWF-6 | 80 | 80 | 45 | 5.5 | 384 | |
125CWF-5 | 80 | 110 | 55 | 5.5 | 456 | |
125CWF-4 | 80 | 120 | 75 | 5.5 | 518 |
