CYZ系列船用臥式自吸離心油泵
產品名稱：CYZ系列船用臥式自吸離心油泵一、概述 General
CYZ 型船用臥式自吸油泵適用于船舶輸送汽油、煤油、輕柴油等石油產品，介質溫度可在-20℃~80℃，是一種優良的船用貨油泵，并適用于陸地油庫、油罐車等的油料輸送，也可以用來輸送溫度不高于80℃的海水、淡水等。如輸送化工液體，可改用耐腐蝕機械密封。
CYZ Series marine horizontal self-priming centrifugal oil pump are used at boats and ships transport petrochemicals such as petrol, coal oil and diesel oil. The temperature of medium can be between 20degrees below zero and 80degrees. This series pump is a high quality marine cargo oil pump, it also be suitable oil transport to the land oil tanker and oil tanker car and so on. It is able to carry seawater and fresh water less than 80 degrees. When used non-corrosive mechanical seal it can be transport chemistry liquid.
從驅動端往下看泵為順時針?lè )较蛐D。
The pump rotates anticlockwise viewd from motor.

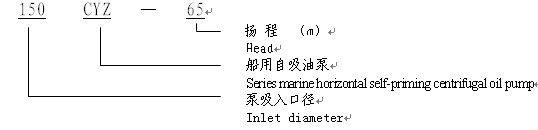

二、型號說明：Type meaning
三、主要技術性能參數：Main technical parameter
序 號 No. | 型 號 | 流 量 | 揚 程 | 轉 速 | 電機功率 | 必需汽蝕余量 |
1 | 40CYZ-20 | 6.3 | 20 | 2900 | 1.1 | 3.5 |
2 | 40CYZ-40 | 10 | 40 | 4 | ||
3 | 50CYZ-40 | 10 | 40 | |||
4 | 50CYZ-12 | 15 | 12 | 1.5 | ||
5 | 50CYZ-20 | 18 | 20 | 2.2 | ||
6 | 50CYZ-35 | 14 | 35 | 4 | ||
7 | 50CYZ-50 | 12.5 | 50 | 55 | ||
8 | 50CYZ-60 | 15 | 60 | 7.5 | ||
9 | 50CYZ-75 | 20 | 75 | 11 | ||
10 | 80CYZ-13 | 35 | 13 | 3.0 | 4 | |
11 | 80CYZ-17 | 43 | 17 | 4.0 | ||
12 | 80CYZ-25 | 50 | 25 | 7.5 | ||
13 | 80CYZ-32 | 50 | 32 | |||
14 | 80CYZ-55 | 60 | 55 | 18.5 | ||
15 | 80CYZ-70 | 60 | 70 | 22 | ||
16 | 100CYZ-40 | 80 | 45 | 5 | ||
17 | 100CYZ-40A | 100 | 40 | 1450 | 4 | |
18 | 100CYZ-40右 | 100 | 40 | |||
19 | 100CYZ-65 | 100 | 65 | 2900 | 30 | |
20 | 100CYZ-75 | 70 | 75 | |||
21 | 150CYZ-55 | 160 | 55 | 45 | 5 | |
22 | 150CYZ-65 | 170 | 65 | 1450 | 55 | |
23 | 150CYZ-80 | 150 | 80 | 2900 | 4.5 | |
24 | 200CYZ-63 | 280 | 63 | 1450 | 90 | 5 |
25 | 200CYZ-65 | 350 | 65 | 110 | ||
26 | 250CYZ-50 | 400 | 50 | 90 | ||
27 | 250CYZ-55 | 450 | 55 | 110 |
